2027 BMW iX5 NEUE KLASSE TECH: BMW PANORAMIC VISION, BMW OPERATING SYSTEM X, AND 800V CHARGING.
The 2027 BMW iX5 introduces BMW Panoramic Vision, a full-width windshield display, as part of the Neue Klasse digital architecture. This marks a generational shift from the current BMW X5 digital interface rather than an incremental update. This page covers Neue Klasse technology in BMW iX5 60 xDrive and expected availability at Grayson BMW.
NEUE KLASSE TECH IN THE 2027 BMW iX5.
Neue Klasse is BMW's platform for next-generation software-defined vehicles, and the 2027 BMW iX5 brings that architecture into the BMW X5 lineup as its battery-electric model. The digital architecture replaces isolated screens and control units with a unified, continuously updating system built on BMW Operating System X. Three display surfaces, one multifunction steering wheel, and an AI-enhanced voice assistant form a single operating environment governed by one software layer.
The standout elements for drivers and front passengers are:
- BMW Panoramic Vision: a full-width projection spanning the base of the windshield.
- BMW 3D Head-Up Display: layered guidance projected into the driver's direct line of sight.
- 17.9-inch Central Display: a free-cut touchscreen with matrix backlight and QuickSelect navigation.
- Available BMW Passenger Screen: a 14.6-inch Full HD display for front-passenger entertainment.
- BMW Intelligent Personal Assistant enhanced by Amazon Alexa+ AI technology.
- BMW Operating System X: software-defined architecture built on the Android Open-Source Project with over-the-air update capability.
Combined, these elements deliver what BMW calls BMW Panoramic iDrive, a display and operating concept that links hardware, software, and driver interaction into one coherent experience.
HOW IT WORKS: BMW PANORAMIC iDRIVE AND OPERATING SYSTEM X.

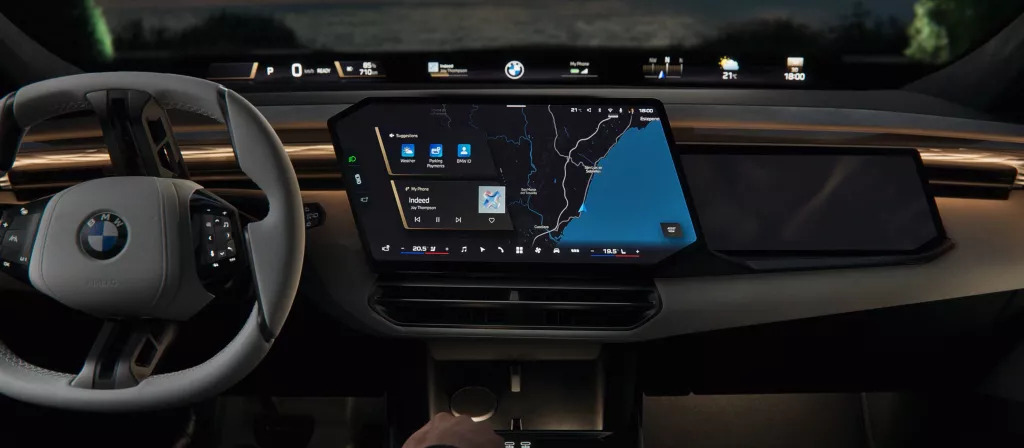

BMW PANORAMIC VISION.
BMW Panoramic Vision projects content across the full width of the lower windshield. Driving data appears in the driver's left field of vision without blocking the road ahead. The center and right sections of the projection are available for personalized content visible to all occupants. Widgets can be moved between the Central Display and BMW Panoramic Vision using a drag-and-drop gesture, and up to six can be arranged for immediate access.
BMW 3D HEAD-UP DISPLAY.
Positioned above BMW Panoramic Vision, the BMW 3D Head-Up Display projects navigation guidance and driver assistance status directly into the driver's line of sight. The displays are coordinated to organize different types of information across the two surfaces.
THE 17.9-INCH CENTRAL DISPLAY.
The free-cut Central Display is the primary touch interface. Matrix backlight technology produces sharp graphics across varied ambient lighting. QuickSelect reduces menu depth for frequently used functions. When the optional BMW Passenger Screen is fitted, it appears to merge visually with the Central Display, giving the front passenger a dedicated 14.6-inch Full HD surface for streaming, video conferencing via the interior camera, and BMW's entertainment library, including the AirConsole gaming platform.
BMW OPERATING SYSTEM X.
BMW Operating System X is the software layer that manages interaction across displays, steering wheel controls, and voice input. Built on the Android Open-Source Project, it supports compatible over-the-air software updates and feature availability after delivery. Up to seven BMW ID profiles store individual settings for displays, ambient lighting, My Modes (SPORT, EFFICIENT, SILENT, RELAXED, BALANCED, EXCITED), and BMW ConnectedDrive preferences.
BMW INTELLIGENT PERSONAL ASSISTANT WITH AMAZON ALEXA+.
BMW Intelligent Personal Assistant responds to natural language via "Hey BMW" or a steering wheel button. With Amazon Alexa+ large language model integration, the assistant supports dialogue-based exchanges rather than rigid voice commands. It can control compatible climate, window, seat heating and ventilation, navigation, and media functions. The Routines function allows drivers to automate combinations of actions triggered by conditions such as temperature, time of day, or seat occupancy.
BMW ConnectedDrive services explained
NEUE KLASSE TECH IN BMW iX5 60 xDrive.
The 2027 BMW iX5 is offered in one model nomenclature for the U.S. market:
BMW iX5 60 xDrive
Every BMW iX5 60 xDrive includes as standard:
- BMW Panoramic Vision (full-width windshield display).
- BMW 3D Head-Up Display.
- 17.9-inch Central Display with free-cut design.
- BMW Operating System X with OTA update capability.
- BMW Intelligent Personal Assistant with Amazon Alexa+.
- Wireless Apple CarPlay and Android Auto.
- BMW ConnectedDrive connected services.
- Multifunction steering wheel with shy-tech illuminated controls and haptic feedback.
- BMW Digital Key Plus (ultra-wideband and Bluetooth).
- Interior and exterior cameras with My BMW App push notification anti-theft alerts.
Available on BMW iX5 60 xDrive:
- BMW Passenger Screen (14.6-inch Full HD, includes four years of BMW Digital Premium).
- Highway and Commuting Assistant (hands-free up to 85 mph) with Active Lane Change.
- Adaptive Chassis Control Professional with motorized anti-sway bar at each axle.
The Neue Klasse operating architecture is standard on BMW iX5 60 xDrive. Available equipment expands the system with additional features.
REAL-WORLD BENEFIT: WHAT NEUE KLASSE TECH DOES FOR OWNERS EVERY DAY.

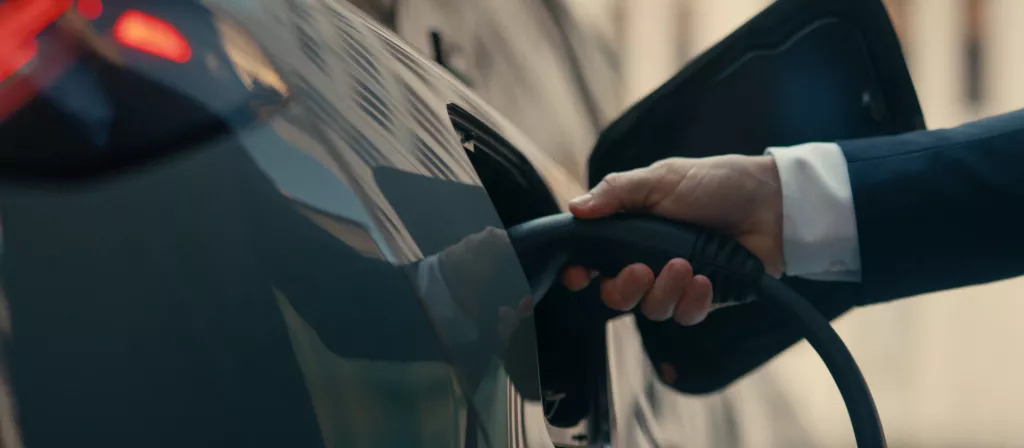

CHARGING INTELLIGENCE BUILT INTO THE NAVIGATION SYSTEM.
BMW iX5 60 xDrive supports 800V DC fast charging at up to 460 kW, bringing the battery from 10 to 80 percent in approximately 22 minutes and adding an estimated 170 miles of range in 10 minutes. EPA range estimate methodology. Battery pre-conditioning activates automatically when BMW Maps routes to a DC charging station to prepare the high-voltage battery for DC charging before arrival.
Drivers in the Knoxville area who use BMW iX5 for long-distance travel toward Nashville, Chattanooga, or beyond can use the navigation system to plan charging stops and estimate arrival charge levels.
Bidirectional charging extends daily utility further. Vehicle-to-Load allows BMW iX5 to power external electrical devices. Vehicle-to-Home can supply power to a residence during an outage. Vehicle-to-Vehicle can charge another electric vehicle directly. The NACS port provides compatibility with supported NACS public charging locations without an adapter.
A DRIVER PROFILE THAT FOLLOWS YOU.
Up to seven BMW ID profiles store individual preferences across displays, ambient lighting, My Modes, seat positions, and steering column settings. When a driver approaches, the welcome animation begins through the BMW Iconic Glow kidney grille, cabin lighting adjusts, and the Central Display greets the driver by name. The steering column and seat move to the saved position before the door closes.
HANDS-FREE CAPABILITY ON FAMILIAR ROUTES.
The available Highway and Commuting Assistant allows hands-free driving on suitable limited-access highways at speeds up to 85 mph when conditions permit. Active Lane Change with Eye Activation can recommend a lane change and support the maneuver after the driver confirms it with a glance toward the appropriate mirror.
Combined with Driving Assistant Plus standard equipment, the system can assist with steering, distance control, speed management, and compatible lane changes while the driver remains attentive and ready to take control.
SMOOTH STOPPING THROUGH SOFTWARE.
In BMW iX5, Heart of Joy with BMW Dynamic Performance Control coordinates drive, braking, steering, and recuperation in milliseconds. BMW Soft Stop uses coordinated electric-drive and braking control to help provide smooth deceleration to a standstill in applicable driving conditions.

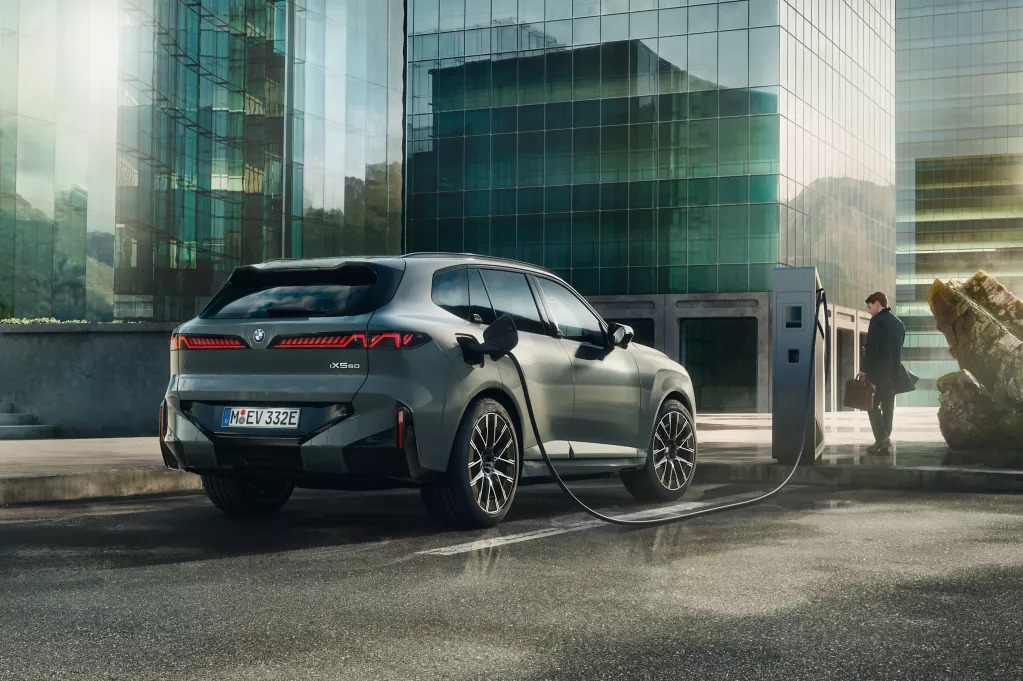

NEUE KLASSE DIGITAL ARCHITECTURE AND CHASSIS TECHNOLOGY.
The 800V Gen6 architecture supports DC charging at up to 460 kW, with an estimated 10-to-80-percent charge time of approximately 22 minutes and an estimated electric range of up to 435 miles.
BMW Panoramic Vision works with BMW 3D Head-Up Display and the 17.9-inch free-cut Central Display as part of BMW Panoramic iDrive. BMW Operating System X manages the digital interface and supports compatible over-the-air software and feature updates after delivery.
BMW ConnectedDrive Store provides access to compatible apps and services, including the AirConsole gaming platform and TiVo-powered Video app.
Adaptive Chassis Control Professional, available on BMW iX5, uses a motorized anti-sway bar at each axle. A 48V electric motor actively manages body-roll control and can decouple the anti-roll bar connection in applicable driving conditions.
GET 2027 BMW iX5 UPDATES FROM GRAYSON BMW IN KNOXVILLE.
BMW iX5 60 xDrive has not yet arrived at Grayson BMW. It is expected to join the BMW X5 lineup in the first quarter of 2027. Contact Grayson BMW for BMW iX5 updates, expected availability information, and future configuration details.
BMW X5 is available now for clients who want to explore the fifth-generation BMW X5 lineup in person.
FREQUENTLY ASKED QUESTIONS.
WHAT IS NEUE KLASSE TECH IN THE 2027 BMW iX5?
Neue Klasse tech in the 2027 BMW iX5 is BMW's next-generation software-defined vehicle architecture, including BMW Panoramic Vision, BMW Operating System X, a 17.9-inch free-cut Central Display, BMW 3D Head-Up Display, and BMW Intelligent Personal Assistant enhanced by Amazon Alexa+. It is standard on BMW iX5 60 xDrive.
WHAT IS BMW PANORAMIC VISION AND HOW IS IT DIFFERENT FROM A HEAD-UP DISPLAY?
BMW Panoramic Vision projects content across the full width of the lower windshield, covering the driver's zone and passenger zones simultaneously. BMW 3D Head-Up Display sits above it and projects navigation and assistance data directly into the driver's line of sight. The two systems are coordinated to organize different information across the displays.
HOW DOES THE 2027 BMW iX5 CHARGE?
BMW iX5 60 xDrive supports 800V DC fast charging at up to 460 kW, reaching 10 to 80 percent in approximately 22 minutes. Level 2 AC charging operates at 9.6 kW using the included Multifunction Charger. The vehicle uses an NACS port compatible with supported public charging locations.
DOES THE 2027 BMW iX5 SUPPORT BIDIRECTIONAL CHARGING?
Yes. BMW iX5 60 xDrive includes Vehicle-to-Load, Vehicle-to-Home, and Vehicle-to-Vehicle bidirectional charging as standard. These functions allow BMW iX5 to power devices, supply a home during an outage, or charge another electric vehicle.
CAN THE 2027 BMW iX5 DRIVE HANDS-FREE?
The available Highway and Commuting Assistant allows hands-free driving on suitable limited-access highways at speeds up to 85 mph when weather, traffic, and system conditions permit. Active Lane Change with Eye Activation supports compatible lane changes confirmed by a glance toward the appropriate mirror. The driver must remain attentive and ready to take control.
WHAT IS BMW OPERATING SYSTEM X?
BMW Operating System X is the software layer that manages displays, controls, and connected services in BMW iX5. Built on the Android Open-Source Project, it supports compatible over-the-air updates and connects to BMW ConnectedDrive Store, where compatible apps and services can be added after purchase. Up to seven BMW ID profiles can be stored, each with individual display, lighting, and driving preferences.
WHAT IS THE ESTIMATED RANGE OF THE 2027 BMW iX5 60 xDrive?
BMW iX5 60 xDrive has an estimated electric range of 435 miles, a preliminary estimate based on BMW AG testing following EPA procedures. The 144 kWh usable battery and 800V Gen6 architecture support the supplied range and charging specifications.
WHEN IS BMW iX5 EXPECTED AT GRAYSON BMW IN KNOXVILLE?
BMW iX5 60 xDrive is expected to arrive in the first quarter of 2027. It is not yet available for inventory purchase or test drives. Contact Grayson BMW for availability updates as the launch approaches.
